Storage Model

Vedana uses four stores, each with its own area of responsibility.

By default JIMS and Datapipe write into the same Postgres database (JIMS_DB_CONN_URI and DB_CONN_URI point to the same server). If you need isolation, the databases can be split.

Postgres / JIMS

JIMS tables are defined in jims_core.db:

class ThreadDB(Base):
    __tablename__ = "threads"
    thread_id: UUID  # PK
    contact_id: str  # indexed
    created_at: datetime
    thread_config: JSONB

class ThreadEventDB(Base):
    __tablename__ = "thread_events"
    thread_id: UUID  # PK
    event_id: UUID   # PK
    created_at: datetime  # server_default=now()
    event_type: str       # "comm.user_message", "rag.query_processed", ...
    event_domain: str     # nullable; not populated by ThreadController
    event_name: str       # nullable; not populated by ThreadController
    event_data: JSON      # Postgres JSON (not JSONB)

Notes:

• event_data is stored as Postgres JSON (with a SQLite JSON variant for tests). See jims_core/db.py:46.
• event_domain / event_name exist in the schema but are not written today — only event_type is populated.
• created_at is set by the server.
• One thread = one chain of events ordered by created_at.

ThreadController.make_context() reads every thread_events row for a thread, filters comm.* into history, and the rest goes into events.

Postgres / Datapipe

ETL stores its tables in Postgres too. See the full list in Vedana ETL. In short:

• dm_* — the data model (anchors, links, attributes, queries, prompts, lifecycle).
• grist_nodes, grist_edges — raw data from Grist.
• nodes, edges — normalised data before loading into Memgraph.
• memgraph_anchor_indexes, memgraph_link_indexes — bookkeeping of which indexes have been created.
• eval_gds — the golden dataset for evaluation.

Datapipe uses these tables for incremental processing: only rows whose key or input changed are recomputed.

Postgres / pgvector

The pgvector extension adds a vector type and cosine/euclidean/inner-product operators.

Tables:

CREATE TABLE rag_anchor_embeddings (
    node_id        text NOT NULL,
    node_type      text NOT NULL,
    attribute_name text NOT NULL,
    attribute_value text,
    embedding      vector(1024) NOT NULL,
    PRIMARY KEY (node_id, node_type, attribute_name)
);

CREATE TABLE rag_edge_embeddings (
    from_node_id   text NOT NULL,
    to_node_id     text NOT NULL,
    edge_label     text NOT NULL,
    attribute_name text NOT NULL,
    attribute_value text,
    embedding      vector(1024) NOT NULL,
    PRIMARY KEY (from_node_id, to_node_id, edge_label, attribute_name)
);

The dimension 1024 is a parameter (EMBEDDINGS_DIM). Changing it requires a SQL migration.

PGVectorStore.vector_search builds queries like:

SELECT (1 - embedding <=> :query_emb) AS similarity, ...
FROM rag_anchor_embeddings
JOIN nodes ON ...
WHERE node_type = :label AND attribute_name = :prop_name AND similarity > :threshold
ORDER BY embedding <=> :query_emb
LIMIT :top_n;

<=> is pgvector’s cosine distance operator; 1 - distance gives the similarity.

Extension management: see CREATE_PGVECTOR_EXTENSION.

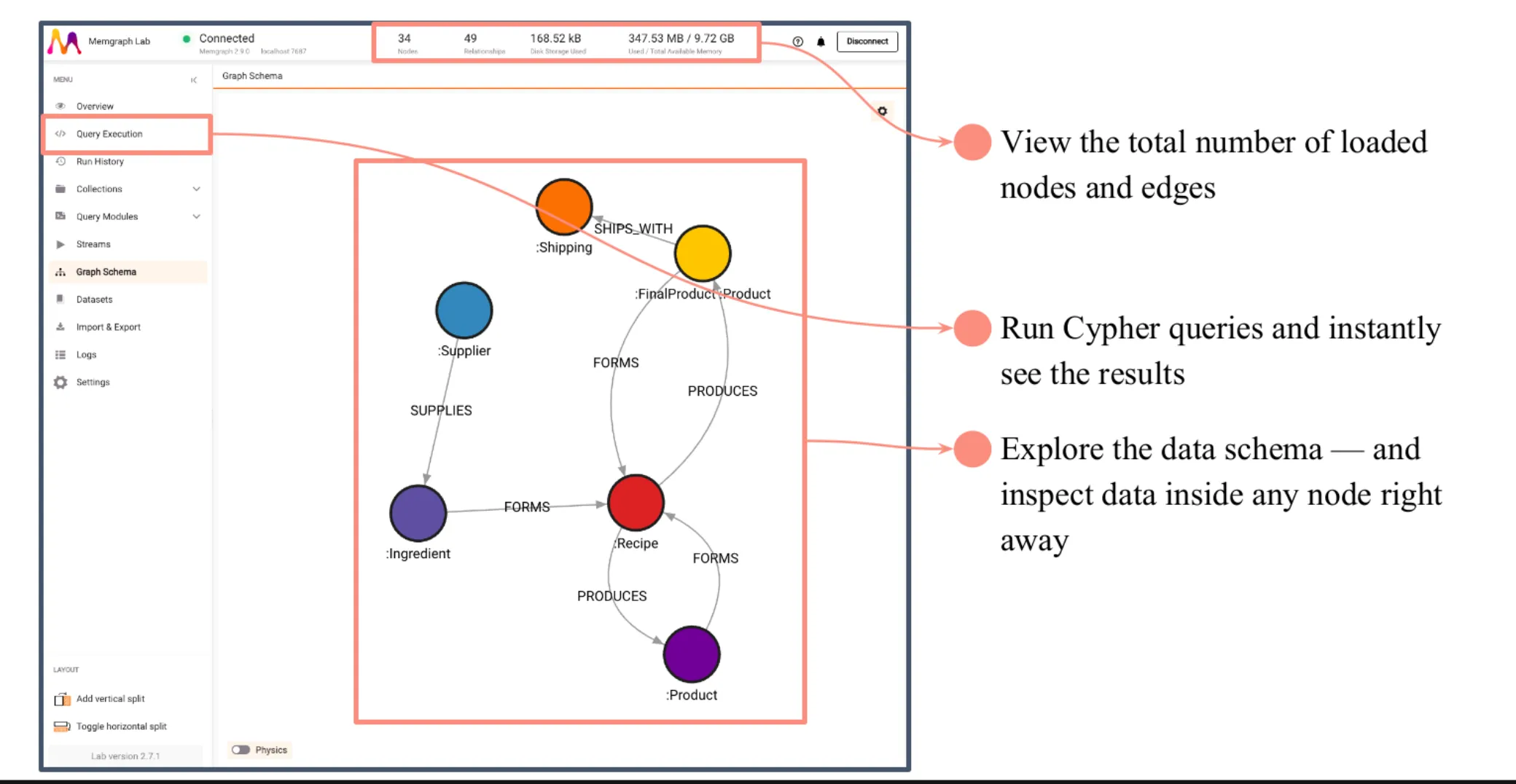

Memgraph

Memgraph is a graph database compatible with Neo4j’s Bolt protocol. Vedana uses:

• nodes with labels (label = anchor.noun) and properties (the node’s attributes);
• edges with a type (type = link.sentence) and properties;
• text indices (for full-text search via text_search.search_all).

Creating nodes and edges:

MERGE (n:`Product` {id: $id}) SET n = {id: $id, name: $name, price: $price, ...} RETURN n

MATCH (nf {id: $from_id}), (nt {id: $to_id})
CREATE (nf)-[r:`PRODUCT_belongs_to_CATEGORY` {since: $since}]->(nt) RETURN r

In Vedana this is done by Datapipe (pass_df_to_memgraph via Neo4JStore).

Read-only Cypher is executed with RoutingControl.READ so you can split read/write replicas if your cluster is configured that way.

Storage mode

In docker-compose Memgraph runs with --storage-mode=IN_MEMORY_ANALYTICAL. This gives high read performance because all data lives in RAM. For large datasets or strict durability requirements, switch to IN_MEMORY_TRANSACTIONAL or ON_DISK_TRANSACTIONAL.

Grist

Grist is an open-source spreadsheet+database. By default it’s used as the human-friendly entry point:

• the Data Model doc (GRIST_DATA_MODEL_DOC_ID) — Anchors, Links, Anchor_attributes, Link_attributes, Queries, Prompts, ConversationLifecycle;
• the Data doc (GRIST_DATA_DOC_ID) — domain tables;
• the Test Set doc (GRIST_TEST_SET_DOC_ID) — the golden dataset.

Reading is done through vedana_core.data_provider.GristCsvDataProvider (Grist’s CSV API) or GristAPIDataProvider.

You can use managed Grist (https://api.getgrist.com) or self-host (gristlabs/grist).

Migrations

Alembic migrations responsible for the JIMS / Datapipe / pgvector schemas live in apps/vedana/migrations/. To run:

cd apps/vedana
uv run alembic upgrade head

In docker-compose this is done by a separate db-migrate service, which waits for db to be healthy and applies migrations before the main app starts.

Backups and restore

⚠️ Vedana does not ship backup/restore scripts. The repo’s docker-compose.yml carries a TODO add complete snapshots for SQL and Cypherl (db / memgraph); until that lands, backups are entirely the operator’s responsibility. Everything below is a recommended scheme, not something Vedana performs automatically.

A recommended scheme for production:

• Postgres: pg_dump / managed snapshot (standard practice).
• Memgraph: cypherl dumps (SHOW SNAPSHOT / mgconsole --output-format cypherl) or built-in snapshot mechanisms (see Memgraph docs).
• Grist: document export or managed backup (if Grist is managed).
• Restore: Postgres first (schema + dm_* + JIMS tables), then Memgraph, then re-run ETL to fill missing embeddings.
